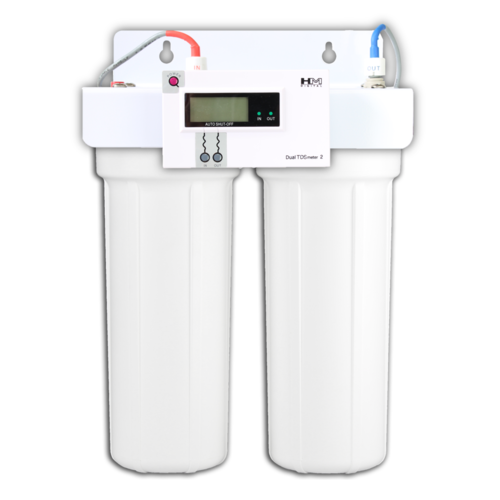

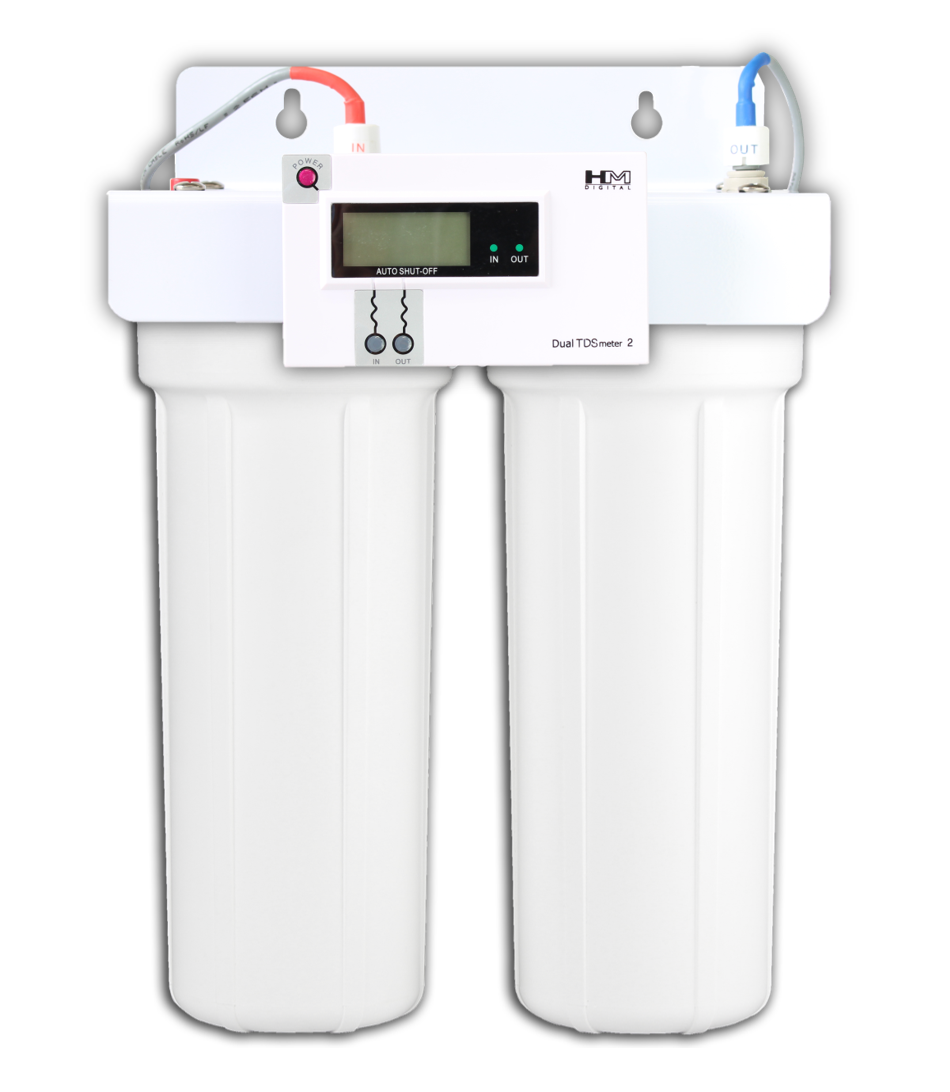

Uniflow Compact Demineraliser System

SKU: FMD-1025-MB

The affordable source of high purity demineralised water. Suitable for smaller Australian dental practices requiring water for autoclaves, disinfectors and chairs. The compact undersink solution.

Uniflow Compact Demineraliser - Facts & Figures

Housing (W x D x H): 450 x 250 x 350
Weight (Filled): 2.4 Kg
Water Quality Produced (TDS): <1 PPM (See more in main description)
Yield per cartridge set: 120 L (Based on Untreated Water Quality of 600 μS/cm)
Replacement Cartridge Set: FCR-1025-MB2

What's Included:

Uniflow Compact Demineraliser System including cartridges
Integrated Dual TDS/EC Meter
Quality Chrome Faucet
Flexible Pressure Tubing
Pressure Limiting Valve 350kPa
Brass Approved Shutoff Valve

$626.95

Pre-order

Expected Ship Date: 15-12-2024

ETA Ship Date: 15-12-2024

Recommended Extras
	Aquastream 10" x 2.5" Mixed-Bed Deionising Resin Cartridge - Twin Pack	$102.50
	Aquastream 10" x 2.5" Mixed-Bed Deionising Resin Cartridge	$54.40

Australia Post - Free

Parcel Post (3-7 Business Days)

Standard Shipping - Free

Road Delivery (3-5 Business Days)

Description

Ideal for the small dental practice, the Uniflow Compact Demineraliser produces high quality water for autoclaves, thermal disinfectors, washers and chairs. Utilising water from your own town water supply, this model utilises reliable and affordable ion-exchange technology to produce up to 120 Litres of water per cartridge changeout. This system includes a quality installation kit and chrome faucet for mounting to your sink.

Features & Benefits

Compact design saving space under the sink
Produces high quality demineralized water from your own town water supply
Safe and easy filter cartridge replacement by your own staff
Integrated Dual TDS/EC meter for easy water quality testing
Delivers up to 120L of quality water suitable for autoclaves, disinfectors and chairs
Assembled & Tested in Australia
12 Month Warranty

Water Purity

The water purity produced by the Uniflow Compact Demineraliser System is depends on the flow rate, feed water quality, and the amount that the DI resin cartridges have been expended. A cartridge set will usually produce water at consistent quality, until the cartridges begin to near the point at which they are 'expended', which means that they have no more capacity remaining to remove minerals and impurities.

The below table provides the typical water purity which would be expected when filtering mains water at the system's design flow rate of 2 litres per minute:

Purity Table		Conductivity		Resistivity
Flow Rate	Cartridge Set	Parts Per Million (PPM) of TDS	Microsiemens/cm (μS)	Megohms/cm (MΩ-cm)
2 Litres per minute	FCR-1025-MB2	<1	<1.56	>0.5

To maintain this water quality, the system must be maintained in accordance with the Operation Manual, and the filter cartridges replaced when required. The TDS meter which comes pre-installed in the system measures in PPM. To convert between conductivity & resistivity, check out the conversion chart.
