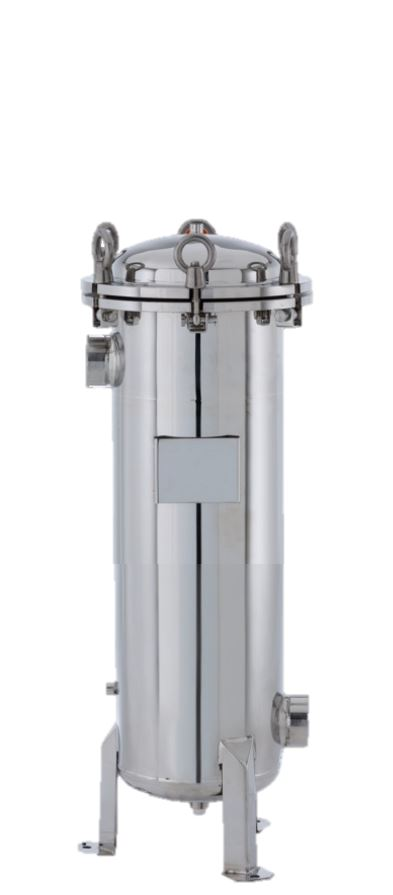

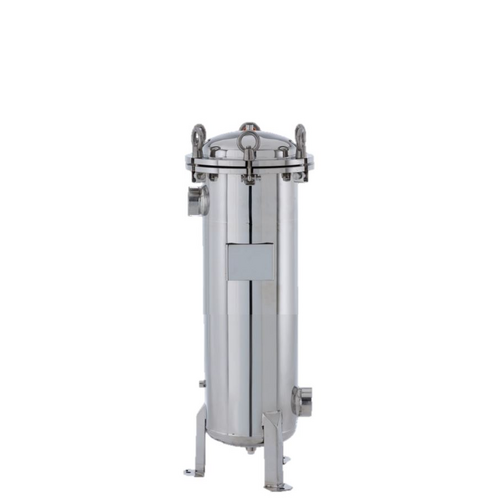

Aquastream 304 Stainless Steel Size 1 Single Bag Filter Housing

Built for commercial and industrial applications, the Aquastream Premier Size 1 stainless steel bag filter housing housing is ideal for bulk reduction of sediment, dirt and scale particulate and flow rates up to 10 Litres/sec

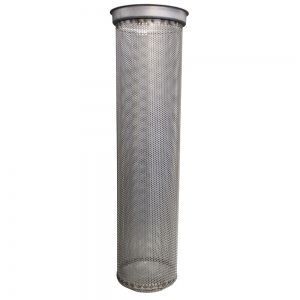

Constructed from heavy duty grade 304 Stainless Steel, the Premier Size 1 bag housing incorporates the heavy duty swing-bolt closure designed for easy bag replacement and is suitable for system pressure up to 10 Bar. A perforated stainless steel basket located inside the housing supports and protects the filter bag, ensuring optimum loading.

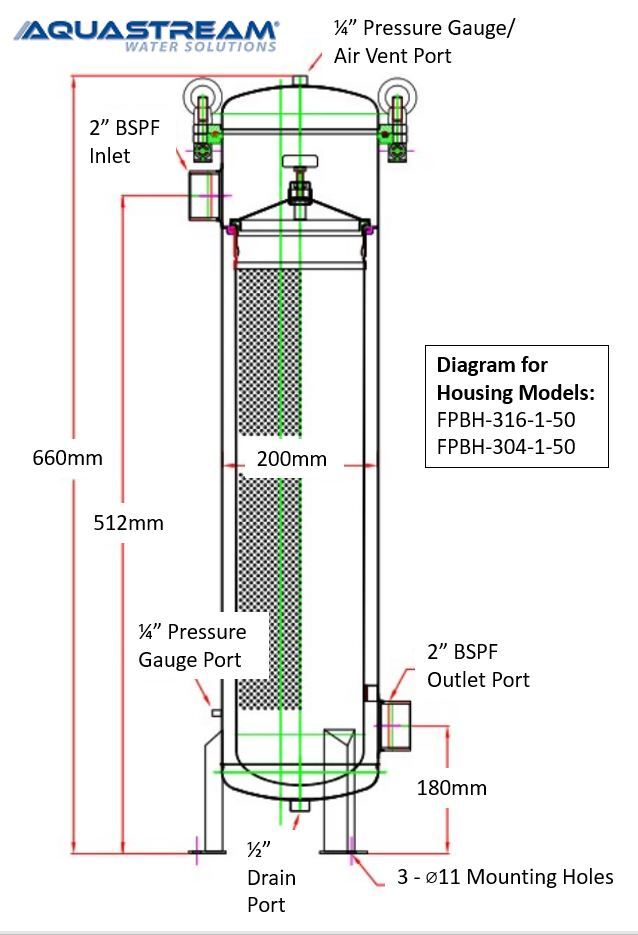

The side inlet and bottom outlet ports are 50mm BSP-M allowing for high flow rates up to 300 LPM and low pressure drop.

All Premier bag housings include a 1/4" BSPM gauge port (located on the lid) and floor-mounting feet.

Each system includes a stainless steel bag-securing device to ensure bags are held securely in place, preventing filter bypass.

This housing suits Size 1 Filter Bags with a collar diameter of 178mm and length of 420mm
