Leading the way with UVC LED Technology in Australia, Aquastream is proud to announce the arrival of our long awaited Glacier Series UVC LED disinfection systems.

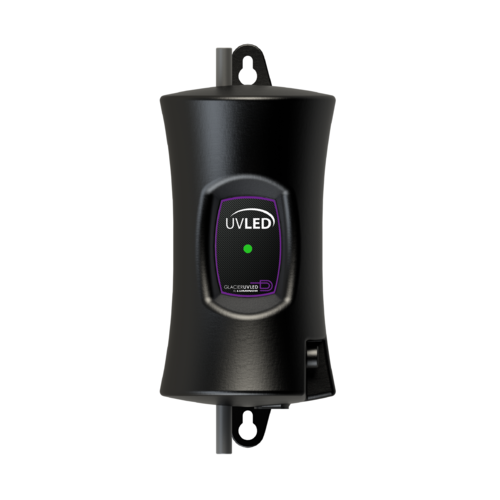

The Glacier GUV-4S is a fully integrated LED based UV disinfection system utilising powerful UVC LED technology to ensure your drinking water is safe to drink. Unlike traditional UV sterilisers which require costly lamp replacements and ongoing maintenance, the Glacier LED UV system requires no maintenance or servicing for the entire life of the unit.
Designed to last for 5000 hours of running time, the UVC LED's only turn "on" when needed based on an integral flow switch and ensure your system will last for many years to come.
This model is equipped with a simple multi-status indicator which shows the operator when the UVC LED is on or of as well as an integrated alarm in the event that the UVC LED fails.
Installation Requirements
The Glacier UVC LED disinfection system requires a 5 micron water filter to be installed prior to the unit to ensure effective disinfection. This filter systems is not included in this product kit and must be purchased separately.
The system is designed with 3/8" Quick-Connect fittings and will require additional fittings depending on whether you are retrofitting to an existing water dispenser or if it is a new installation.
A standard powerpoint is required to power the LED UV module.
Our friendly team are here to help with sourcing all the fittings you require for installation - Please call our friendly team on 1800 446 500 for assitance.
Specifications
| Model |
GUV-4S |
GUV-5S |
Flow Rate
(@ 10 mJ/cm² @ 95% UVT) |
1.5 gpm |
1.5 gpm |
| 5.6 lpm |
5.6 lpm |
|
Flow Rate
(@ 16 mJ/cm² @ 95% UVT)
|
1.3 gpm |
1.3 gpm |
| 4.9 lpm |
4.9 lpm |
|
Flow Rate
(@ 30 mJ/cm² @ 95% UVT)
|
0.6 gpm |
0.6 gpm |
| 2.4 lpm |
2.4 lpm |
|
Flow Rate
(@ 40 mJ/cm² @ 95% UVT)
|
0.4 gpm |
0.4 gpm |
| 1.3 lpm |
1.3 lpm |
| UVT (%) |
Recommended above 90% |
| Headloss at Max Flow |
166 mBar (2.4 psi) |
| Max Pressure |
6.9 bar (100 psi) |
| Max Ambient Temperature |
50°C (122°F) |
| Operating Water Temperature |
0-45° C (32-113° F) |
| Water Connections |
3/8" OD Tube (fits John Guest® style quick connect fittings) |
| Input Voltage |
12VDC |
| Input Power |
15W |
16W |
| UV Intensity Monitoring |
NA |
Coming soon |
| Electrical Connection |
Standard 12VDC barrel connector, 2.1 x 5.5 mm |
| LED Status Monitoring |
YES |
| LED Life Monitoring |
YES |
| LED Life |
5,000 hours |
| 4-20 mA Output |
NA |
YES (optional MOD-420 sold separately) |
| Solenoid Output |
NA |
YES (optional MOD-SOL sold separately) |
| Dry Contacts (solenoid ready) |
NA |
YES (optional MOD-RAM sold separately) |
| IoT |
NA |
YES (optional MOD-APP sold separately) |
| Display |
Dual colour LED |
Full customizable colour screen |
| Overall Dimensions (with mounting brackets) |
241mm x 104mm x 107mm (9.5" x 4.1" x 4.2") |
| Shipping Weight |
400g (14 oz) |
