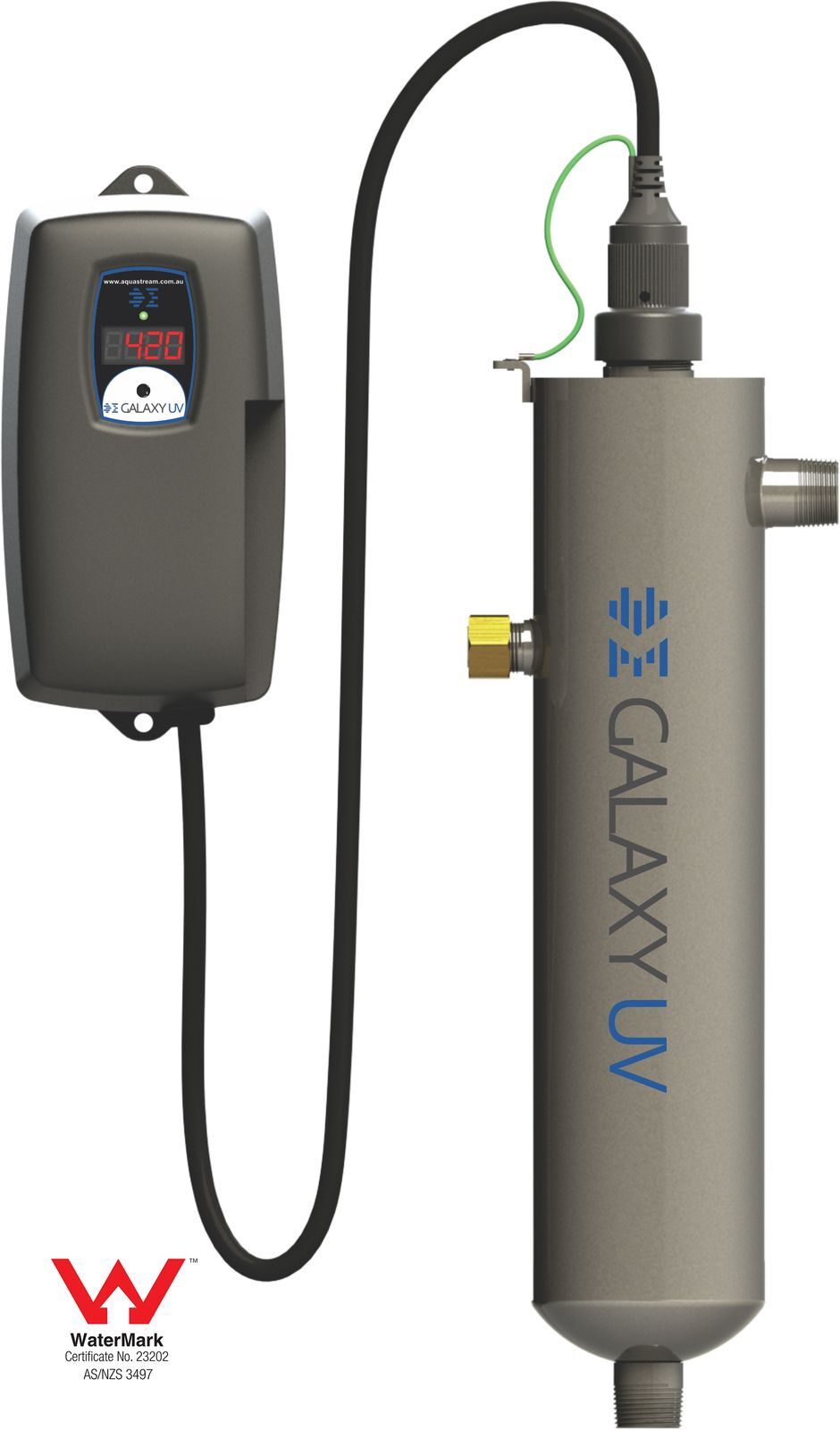

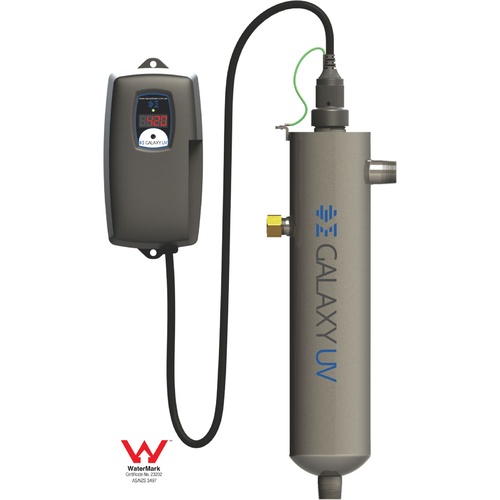

GALAXY ECO GX4-H53 Compact UV System 53 LPM

SKU: UV-GX4-H53
GALAXY ECO 4.1 Series Compact Ultraviolet Disinfection System to treat flows from 42 Lpm through to 53 Lpm. Advanced colour display for easy system checking. Grade 316L Stainless Steel with 1-Inch (25mm) inlet and outlet connections - Non monitored.

Advanced features and benefits include:

  • Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure high-output coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
  • 4.1 Series Splash-Proof Controller with visual and audible lamp alarms and visual lamp lamp life display showing lamp counter and total running time.
Sale price
$1,298.00
In Stock
Australia Post - Free
Parcel Post (3-7 Business Days)
Standard Shipping - Free
Road Delivery (3-5 Business Days)

GALAXY ECO Series GX4-H53 Compact Ultraviolet Disinfection System treats flow rates from 42 Lpm through to 53 Litres/minute.



Advanced features of the Compact Series:

  • Compact footprint for installation in small areas
  • Coated LP-HO UV Lamps with 10,000 hour lamp life
  • Stainless Steel 316L reactor chamber for medical and marine applications
  • Galaxy 4.1 Series controller with lamp life indicator and fault alarms

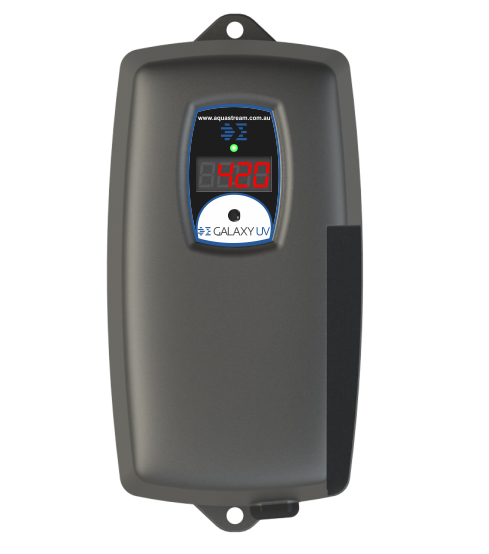

Powered by the new GALAXY 4.1 series controller including both audible and visual lamp lamp life display showing lamp counter and total running time, the constant current electronic power source is protected by a splash-proof case.

The robust 316 stainless steel reactors include an integral port to allow for future upgrade to a UV monitored system. Should UV monitoring not be required, an integral visual glow plug provides an easy check to ensure the lamp is active.

Reliable, proven, high-quality low-pressure high-output (LPHO) UV Lamps are coated to ensure a consistent output over their 10,000 hour lamp life.



Order Code
Port Size
(Inch)
Flow Rate
@ 30mJ/cm
Flow Rate
@ 40mJ/cm2
UV Lamp
Quartz

UV-GX4-H53

1" Male

53

42

GX-RL-H420 GX-RQ-420

Reactor Dimensions: 8.9 x 50.8 cm



Advanced features and benefits include:

  • Axial flow 316L Stainless Steel reactor for optimum fluid dynamics
  • Low-pressure high-output coated UV Lamps for consistent UV output throughout 10,000 hour lamp life
  • 4.1 Series Splash-Proof Controller with visual and audible lamp alarms and visual lamp lamp life display showing lamp counter and total running time.
SKU UV-GX4-H53
Model # GX4-H53
Barcode # 9352837020180
Brand Galaxy UV
