How to change the 91290/93701 Zip HydroTap G4 water filter cartridge in 15 Easy Steps

Overview

Your Zip HydroTap will notify you when the filter replacement is due. The change filter light will flash white once per minute until the filter has been replaced, and the filter percentage will show 0% on the Home screen.

View our great specials on Zip Hydrotap 91290 Water Filters here

What will I need?

Tools

Empty bucket
Cloth or Towel

Materials

Zip HydroTap

Steps

Grab an empty bucket and an old towel to mop up any spills.

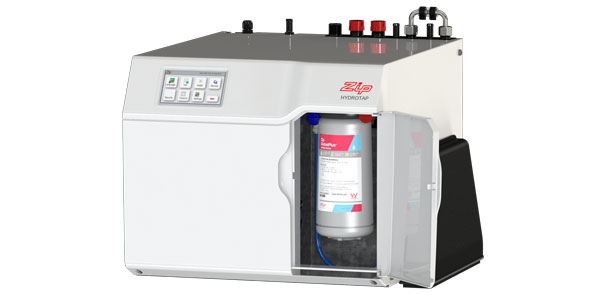

Open the filter access door on the front of the HydroTap Command Centre. You will see the filter cartridge in front of you.

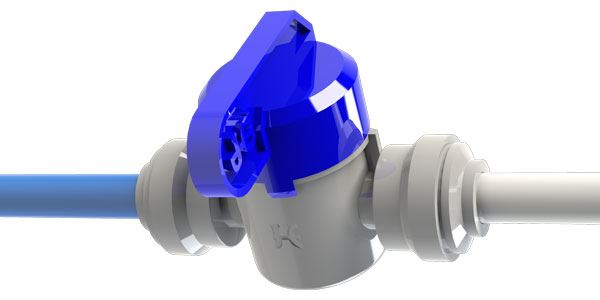

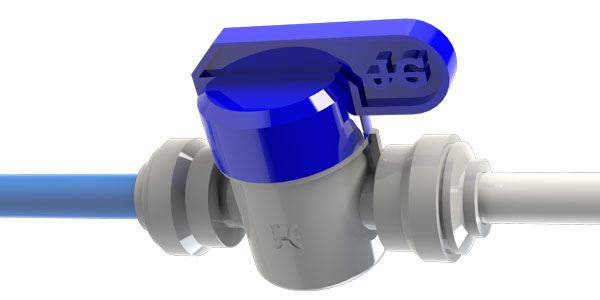

Reach to the rear right hand side of the cartridge and you’ll find a flush line (looks like a hose) which is around 60cm long which will be sealed with a stop cock located in the centre of the hose. Place the free end of the flush line into the empty bucket or container. Turn the stop cock quickly on then off to relieve system pressure.
Gently hold the filter cartridge then press the red lever at the top right of the unit and rotate the cartridge a quarter turn to the left. The unit should detach and you should be able to pull it free in a downwards motion. Some water may drip from the cartridge at this point. Be sure to keep the cartridge level to avoid spills
Place spent cartridge in the sink or other suitable container.

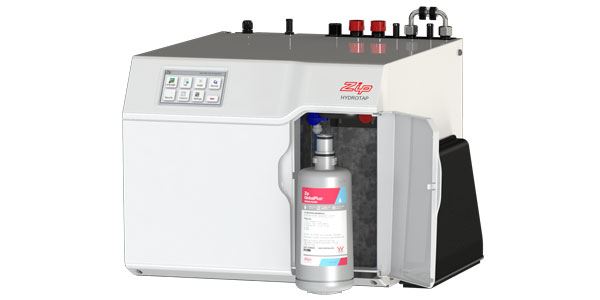

Unpack your Zip replacement cartridge and remove the sanitary cap. Write today’s date where shown on the label. Ensure you avoid touching the O-rings or filter opening as this can cause bacterial contamination of the cartridge.

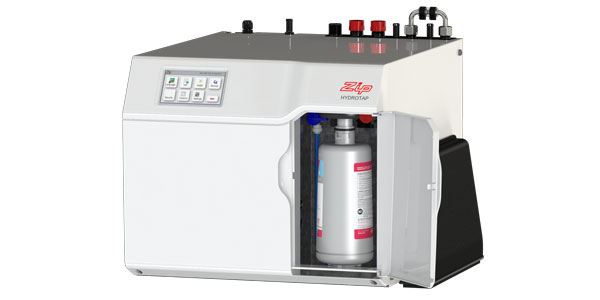

Slightly moisten the O-rings with regular tap water and line up the front cartridge label to the left.
Gently but firmly push the cartridge up into the filter head and turn a quarter-turn to the right – as far as it will go without forcing it. The cartridge should now be locked in position with the front label facing forward.

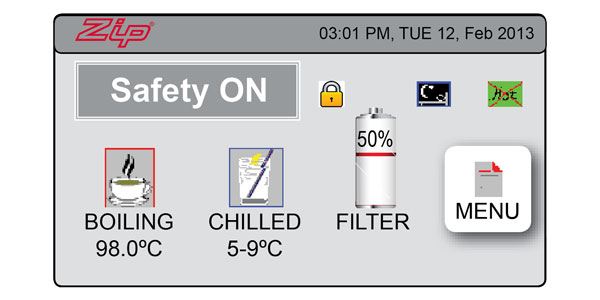

Press the [MENU] button to bring up the main menu on the screen.

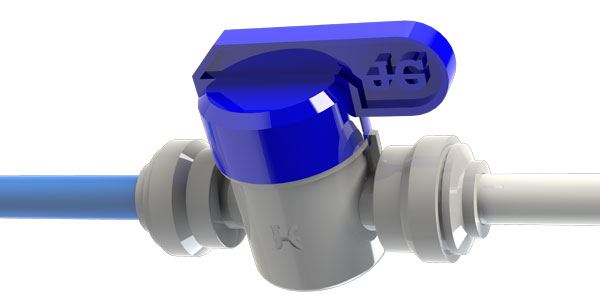

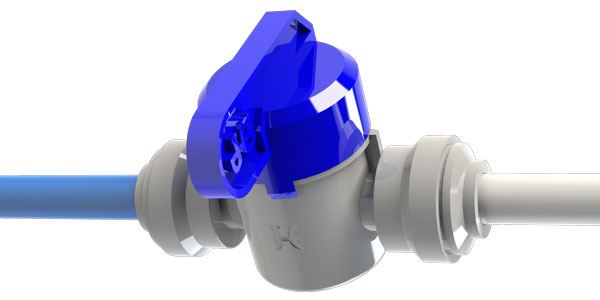

Press the [Install] button and turn the stop valve ON by rotating the lever clockwise until it is in line with the hose

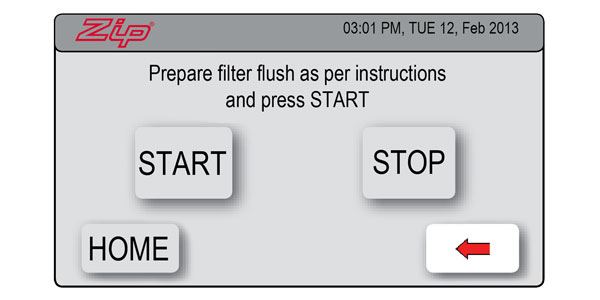

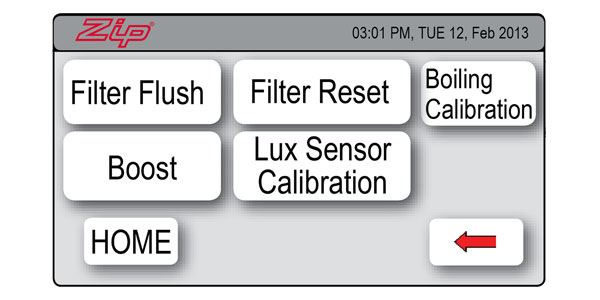

Press the [Filter Flush] button then press [Start] to begin the process. Ensure you flush water through the cartridge for 2 minutes to wash out any excess black carbon particles. These are harmless, but it's still best to flush them out before drinking the water.
When the filter flush is finished, turn the stock valve OFF by rotating the lever anti-clockwise until it is perpendicular to the hose.
Press [Stop] to end the filter flush process.
Press the [Home] button to return to the home screen.

Note: If you are carrying out this flush after the HydroTap’s initial installation, the unit will go directly into calibration mode after the Filter Flush Mode is turned off. With any subsequent filter changes the system will automatically revert to the main menu.
Dispose of used cartridge in your general waste bin.
